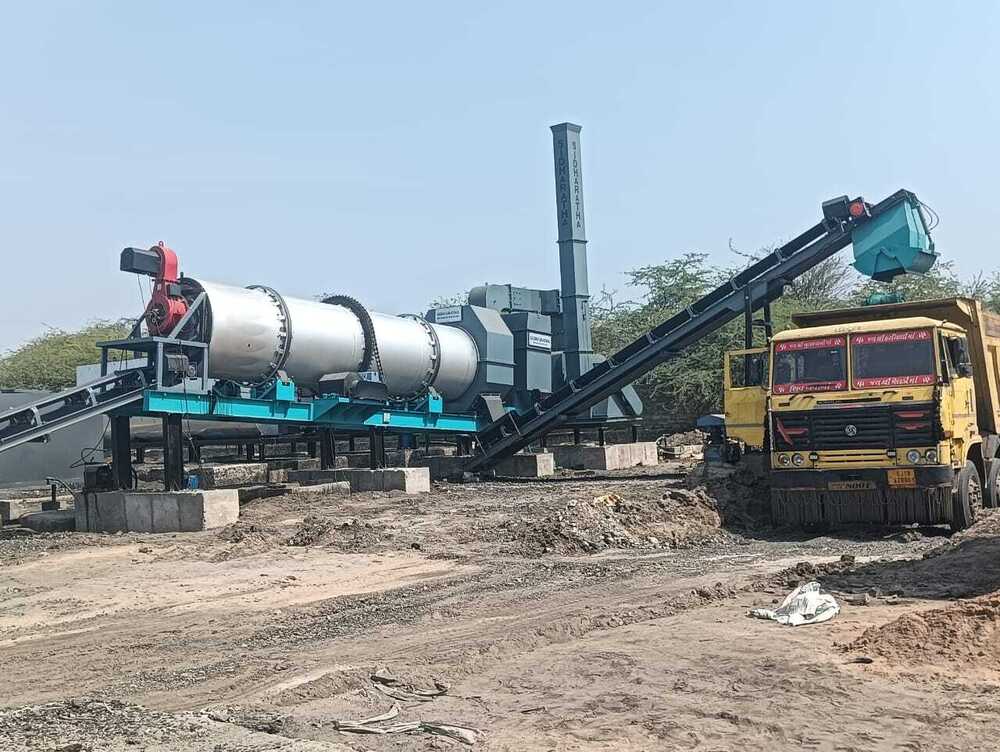

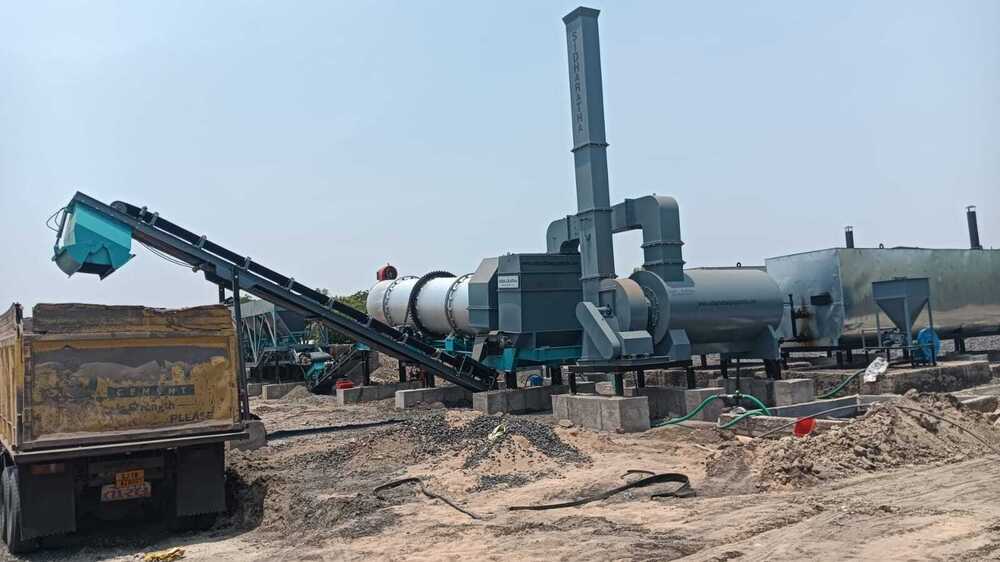

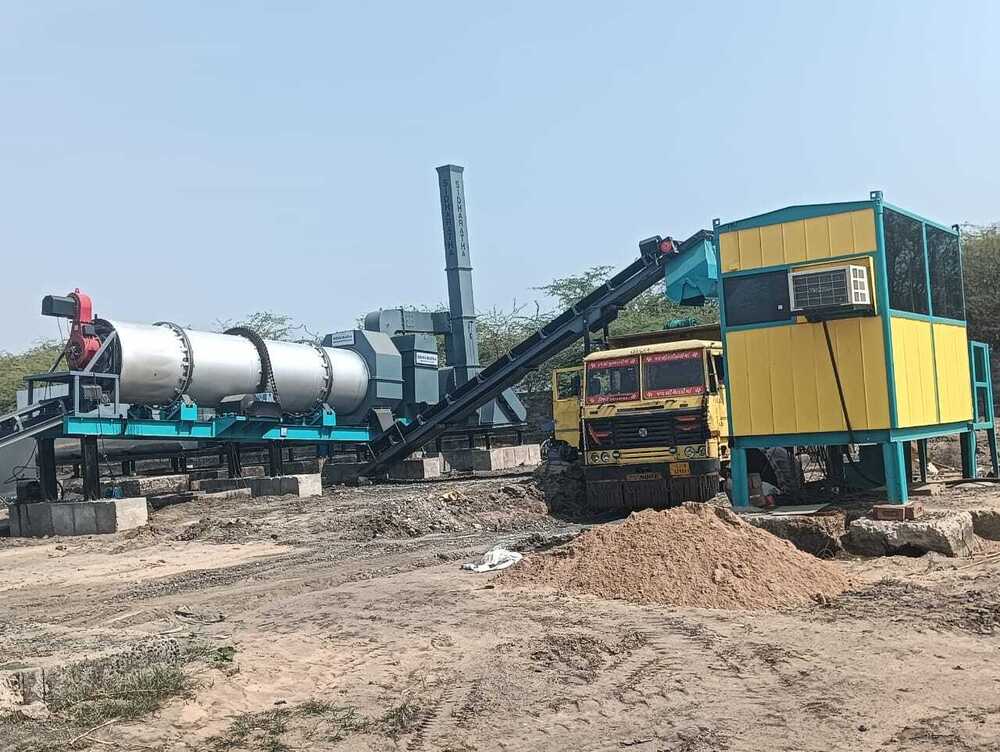

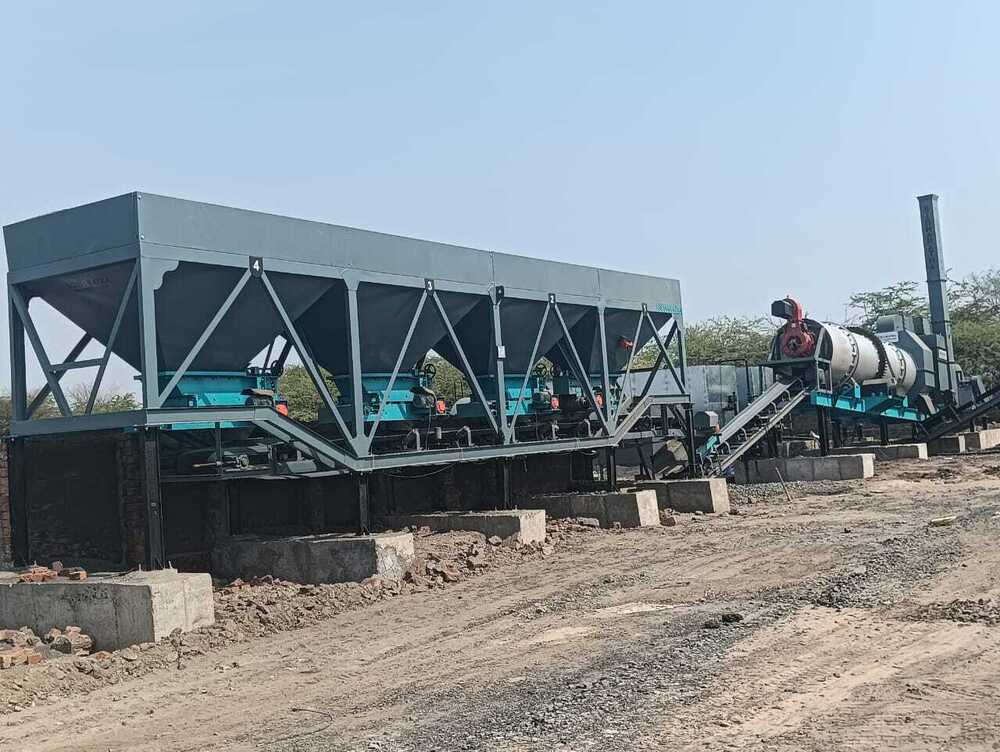

Asphalt Drum Mix Plant DM 50

Asphalt Drum Mix Plant DM 50 About

DRUM MIX PLANT

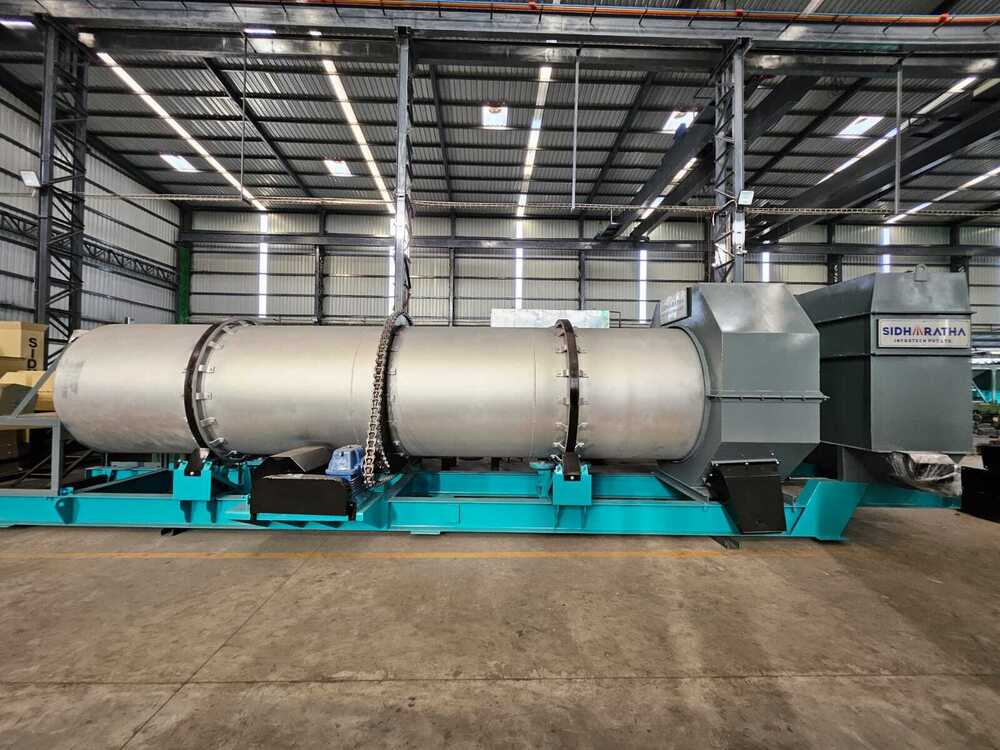

Thermo drum Unit of entire plant is the real heart It is made of a Rotating cylindrical steel drum Mounted on 4 - Trunnion rollers on a robust chassis on legs for vibration free rotation Drum function is in 2 parts heating zone for aggregates heating to desired temp by numbers of internal cascading flights A highpressure oil fired burner is mounted at feeding end & flame and hot gases heat aggregates by radiation Convection and conduction heat transfer process Lower half portion of drum is mixing zone where in hot liquid bitumen binder is sprayed in specially design Jshaped Flights Thoroughly mixes heated Aggregates By fully Coating Bitumen and Produces homogeneous Mix A rotary discharge rotor at the drum end discharge out mix material on to load conveyor Multicone cyclones and exhaust fan with stack is also mounted on the chassis at lower end electronic computerized control panel controls aggregate gradation control bitumen percent control & final Mix temperature as per MoRTH specifications
